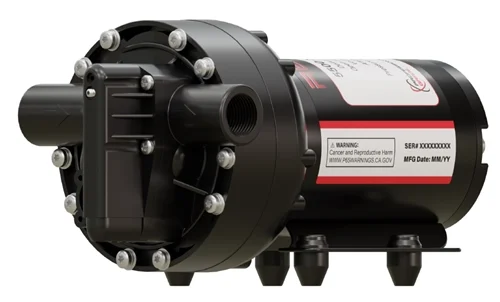

Remco’s 5500 series 5.3 GPM Sprayer pump with 1/2″ FNPT inlet & outlet ports is the Professional Grade choice for performance and efficiency. Utilizes a 60 PSI pressure setting and Remco’s signature sealed 12 volt electric motor allowing the pump to operate in the harshest environments.
Applications:
Agricultural/Industrial Chemical Spraying
Liquid Fertilizers
Soft Washing/Beaching
Dust Suppression
General Industrial
Designed to with stand long duty cycles.
Up to a motor temperature of 180 degrees
Compatible with most common agricultural spray chemical including
herbicides
fertilizers
insecticides
This pump is not listed for potable water use.
NOT FOR USE WITH GASOLENE OR ANY PETROLEUM PRODUCTS
Motor:
12 VDC Permanent Magnet, Sealed Intermittent Duty
Voltage Range: 11.5 VDC – 14.5 VDC
Max Amps: 16 Amps at 60 PSI
Fuse: 20 Amp Recommended
Control: Pressure switch
Maximum Shell Temperature of 180 F
Wire Leads: 14 AWG – 5.5″ in length
IP Rating: IP65
Pump:
5 Chamber Diaphragm
Maximum Flow: 5.3 GPM
Inlet/Outlet Ports: 1/2″ FNPT ports.
Max Liquid Temp: 140 F
Vertical Prime: up to 14 feet
Run Dry: Yes
Pressure Setting: 60 PSI [4.1Bar]
Dimensions: 9.1″ length x 4.8″ width x 4.6″ height
Weight: 6.6 lbs.
OEM P/N: 5537-1E1-82B.
Made in the USA.
5500 series installation manual
Remco Professional Grade 5500 Series 5.3 GPM, 60 PSI On Demand, 12V Sprayer Pump, 1/2″ FNPT Ports
