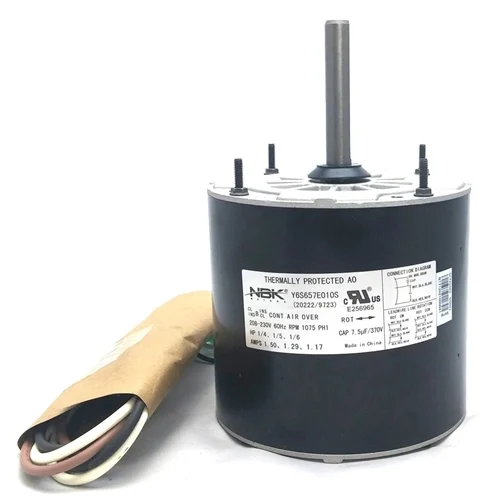

New Century 9723 Condenser Fan Motor, 1/4-1/6 HP, 1075 RPM, 208-230V

SALE 🔍

New Century 9723 Condenser Fan Motor, 1/4-1/6 HP, 1075 RPM, 208-230V

New Century 9723 Condenser Fan Motor, 1/4-1/6 HP, 1075 RPM, 208-230V

Original price was: $119.95.Current price is: $29.99.

SKU: 7429693335 Category: hot sale

Description

The New Century 9723 is a condenser fan motor for a variety of Fasco, GE, and other models. 5″ diameter motor, 1075 RPM, 208-230 volts.

See the additional info section below for all compatible models.
Permament split capacitor.
Automatic overload protection.
Totally enclosed air over.
Class B insulated.
Ball bearing.
1/2″ diameter shaft with flat.
Lead Length: 36″.
Frequency: 60Hz.
Current: 0.9A.
Voltage: 208-230V.
RPM: 1075.
HP: 1/4, 1/5, 1/6.
Ambient Temperature: 140 degrees F / 60 degrees C.
Extended stud mounting.
Number of Poles: 6.
Overall Length: 7.5″
Shaft Diameter: 0.5″.
Frame Length: 5.17″.
Shaft Extension: 3″.
Weight: 6 lbs.
Also known as NBK Parts 20222.

New Century Condenser Fan Motor, 1/4-1/6 HP, 1075 RPM, 208-230V
